Features
► High efficacy of 130-140 lm/W
► DLC V5.0 qualified, premium classification
► Low glare rating and CRI of more than 80
► Utilize high-quality Lumileds SMD LEDs and Inventronics driver
► Integrated controls and sensor options (occupancy & dimming)
► 5 years warranty
Specifications
| Watts | 320 W |
| Model# | T80012320W-HV |
| Lumen | 43200 lm |
| Lumen Efficacy | 135 lm/W |
| Replaces | 1000 W |
| Input Voltage | 277-480 VAC |
| CCT | 4000K / 5000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimensions | 1200 x 375 x 66 mm |
| Weight | 8.8 kg |
| Rated Life | 50000 hours |
| Working Temperature | -30°C to +50°C |
| Warranty | 5 Years |
Dimensions
Length: 1200 mm
Width: 375 mm
Height: 66 mm

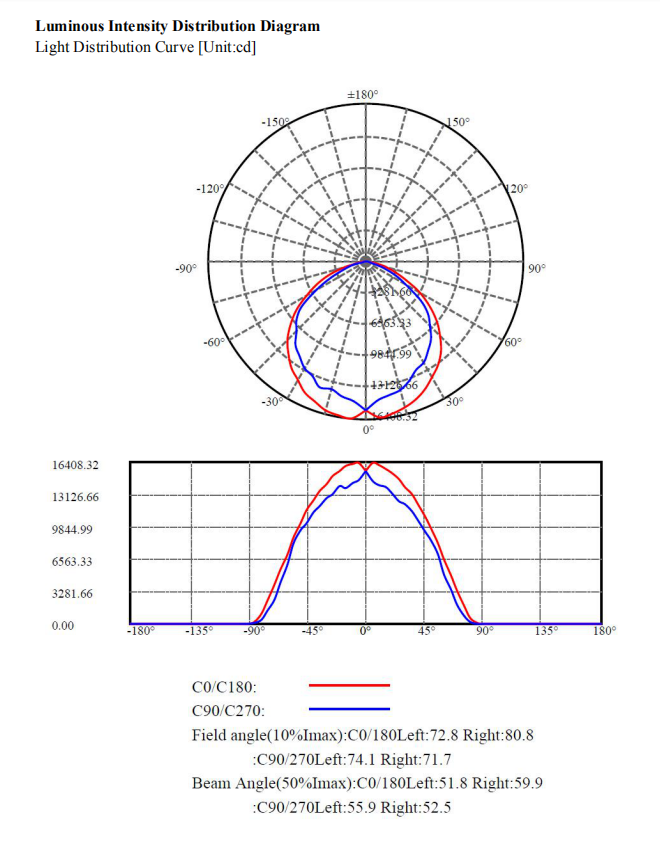

Photometrics
Mounting Options
Cable-suspended mount or direct mount
Certificates
CE, RoHS, FCC, cULus, DLC
UL File Number: E476514
Applications
Education, Hospitality, Manufacturing, Offices and Banks, Retail,
Sports and Recreation, Transportation, Warehouses
